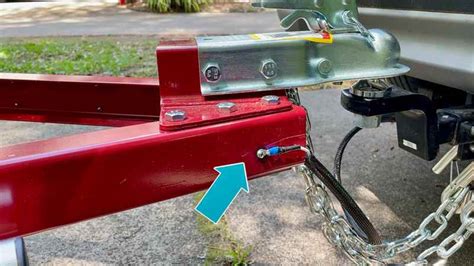

Grounding Trailer Lights

Ensuring your trailer lights function correctly is paramount for safe towing. Faulty lighting can lead to dangerous situations on the road, putting both you and other drivers at risk. A common culprit behind malfunctioning trailer lights is a poor ground connection. This often-overlooked detail can cause frustrating flickering, complete failure of individual lights, or a total blackout across the entire lighting system. Therefore, understanding how to properly ground your trailer lights is not merely a matter of convenience; it’s a crucial step in responsible trailering and maintaining compliance with traffic safety regulations. Before embarking on any troubleshooting, it’s imperative to first confirm the integrity of your trailer’s wiring harness, checking for any visible damage, corrosion, or breaks in the wires. Furthermore, inspect the bulbs themselves to rule out simple bulb failure as the source of the problem. Once these preliminary checks have been completed, and the issue persists, you can then confidently move on to diagnosing and rectifying ground connection issues, using the methods outlined below to establish a reliable and secure ground for your trailer’s lighting system. This process will not only restore optimal functionality but also enhance your safety while on the road, safeguarding against potentially hazardous situations arising from inadequate illumination.

Consequently, after confirming the lights and wiring are in good working order, the focus shifts to the grounding system. A reliable ground connection provides a low-resistance pathway for the electrical current to return to the vehicle’s battery, completing the electrical circuit necessary for the lights to operate. There are several methods to effectively ground your trailer lights, each with varying levels of complexity and permanence. Firstly, consider the most straightforward approach: inspect the existing ground wire. This wire, often overlooked, is crucial for proper grounding. It should be securely attached to a clean, unpainted metal surface on the trailer frame. Corrosion is a common enemy; if the connection is corroded, the electrical resistance increases dramatically, hindering the flow of electricity and leading to dim or non-functioning lights. Therefore, clean the connection thoroughly using a wire brush and apply an anti-corrosion lubricant to ensure a lasting and reliable connection. Alternatively, if the existing ground wire is damaged or missing, you may need to install a new one. This involves running a new, appropriately sized ground wire from the trailer’s light harness to a suitable grounding point. Remember to ensure the chosen grounding point provides a significant surface area for optimal contact and minimal resistance. Finally, consider using a grounding strap which can provide a robust alternative to a single wire, especially in situations where corrosion is a significant concern or for heavier trailers. The key, regardless of the method, is to create a clean, secure connection that minimizes resistance to ensure the efficient flow of current and prevent electrical problems.

In addition to the physical connection, proper maintenance is key to preserving a reliable ground. Regular inspection of the ground connection is crucial; visual checks should be conducted before each towing trip, looking for signs of corrosion, loose connections, or damage to the wiring. Furthermore, periodic cleaning of the connection points with a wire brush and application of an anti-corrosion lubricant will significantly extend the life and effectiveness of the grounding system. Neglecting this preventative maintenance can lead to increased resistance, resulting in the very problems this article aims to resolve. Moreover, consider the environmental conditions. Exposure to the elements, particularly moisture and salt, accelerates corrosion and compromises the integrity of the ground connection. If you frequently tow in harsh environments, more frequent inspections and maintenance are recommended to ensure consistent, safe operation of your trailer lights. Finally, if you are still experiencing issues after implementing these steps, it’s advisable to seek professional help from a qualified auto electrician or trailer repair specialist. They possess the expertise and tools to diagnose more complex electrical problems that might be affecting your trailer’s lighting system. Remember that ensuring your trailer lights are correctly grounded is an ongoing process, not a one-time fix. Proactive maintenance and regular inspection contribute to safe and reliable trailering.

Assessing Your Trailer’s Wiring Harness: A Preliminary Inspection

Inspecting the Wiring Harness: A Step-by-Step Guide

Before you even think about connecting your trailer to your vehicle, a thorough inspection of the trailer’s wiring harness is crucial. This seemingly simple step can save you considerable time, frustration, and even potential safety hazards down the road. A faulty harness can lead to malfunctioning lights, which is not only illegal but also significantly increases your risk of accidents. So, let’s get our hands dirty (metaphorically, unless you’re dealing with some serious grime!) and meticulously check everything.

Visual Inspection: Looking for Obvious Problems

Start with a visual scan of the entire harness. Look for any obvious signs of damage such as frayed wires, broken insulation, exposed copper, or any signs of corrosion. Pay close attention to areas where the wires enter and exit connectors, as these are often points of stress and potential failure. Check for any kinks, bends, or areas where the wires might be pinched or crushed. These can disrupt the electrical flow and lead to inconsistent or completely non-functional lights.

Testing the Continuity of the Wires

A visual inspection alone isn’t sufficient. You need to verify the electrical continuity of the wires to ensure a complete circuit. A simple multimeter is the perfect tool for this task. If you don’t have one, consider investing in one; they are relatively inexpensive and incredibly handy for various electrical tasks. Set your multimeter to check for continuity (usually represented by a symbol of a diode). Touch the probes to the ends of each wire; a continuous tone or reading indicates a good connection. If you get no reading, you’ve found a break in the circuit that needs fixing.

Checking the Connectors and Bulbs

Carefully examine all the connectors on your trailer’s wiring harness. Look for corrosion, loose connections, or any signs of damage. Gently wiggle each connector to check for stability. If any connector appears loose or corroded, consider replacing it. While you’re at it, check your trailer’s light bulbs. Replace any that are burnt out or damaged before you begin the grounding process. This ensures all your lights are functional and ready to go.

Organizing your Findings

To aid in the troubleshooting process, create a simple table documenting your findings. This allows you to keep track of any problems you find and systematically address them.

Wire Color	Expected Function	Continuity Test Result	Notes
(e.g., Brown)	(e.g., Ground)	(e.g., Good/Bad)	(e.g., Slight corrosion noted)
(e.g., Green)	(e.g., Left Turn)	(e.g., Good/Bad)	(e.g., Connector loose)

Remember, a properly functioning wiring harness is essential for safe and legal trailer operation. Taking the time to perform this thorough inspection will pay off in the long run. If you find any issues, address them before proceeding further.

Identifying the Ground Wire

Before you can ground your trailer lights, you need to identify the ground wire. This is usually a bare wire, a wire with green insulation, or sometimes a black wire (though black is more commonly used for hot wires, so double-check!). Look for a wire that’s not connected to a specific light function like brake lights, turn signals, or running lights. Sometimes, the ground wire is bundled with other wires in the trailer’s wiring harness. Carefully inspect the harness, looking for a wire that seems separate or different from the others. If you’re still unsure, consult your trailer’s wiring diagram. Many manufacturers include diagrams in the owner’s manual or provide them online. These diagrams can help you visually trace the wires and identify the ground wire definitively. If you can’t find a diagram, a simple continuity test with a multimeter can confirm whether a wire is indeed the ground. Remember, safety first! Always disconnect your trailer’s battery before working with the wiring to prevent accidental shocks or short circuits.

Locating the Correct Connection Point

Finding the ideal ground connection point on your tow vehicle is crucial for a safe and effective trailer light setup. A poor connection leads to unreliable lighting, which is a significant safety hazard. You want a connection that provides a low-resistance path back to the vehicle’s chassis, ensuring a strong ground. Several locations offer this secure grounding; however, choosing the wrong spot can cause issues.

Common Grounding Locations:

The most common location is a dedicated ground point on the vehicle’s frame. Manufacturers often include these points near the hitch or in the rear bumper area. These points are typically bolt-holes with sufficient exposed metal for a secure clamp connection. Look for a clean, unpainted area of metal to ensure a solid electrical contact. Never ground to painted or coated surfaces because paint insulates, preventing a good connection. Cleaning the surface of any rust or debris before attaching your ground wire ensures optimal conductivity.

Another potential location is the chassis itself. However, this approach requires careful selection. Identify a structurally sound part of the chassis made from exposed, unpainted metal. Avoid areas with moving parts or areas prone to corrosion. Using a bolt or screw to secure your connection, preferably one already existing on the vehicle, is the best method to minimize additional drilling and ensure a strong bond.

Avoid grounding directly to the trailer hitch, as this is not always the most reliable ground point and can interfere with the electrical connection of other components. Furthermore, avoid small-gauge wires for your ground connection, opting for a wire gauge size consistent with or larger than the gauge of your signal wires to carry the sufficient electrical current.

Choosing the Right Connection Method:

Once you’ve chosen the location, a secure connection method is crucial. A ring terminal crimped onto the end of your ground wire provides the most reliable contact. Use a crimping tool designed for the size of the ring terminal and wire gauge to ensure a secure and lasting connection that will withstand vibration and movement. Simply wrapping the wire around a bolt isn’t recommended because it can loosen over time. The ring terminal provides a larger surface area for contact and creates a more durable connection, reducing resistance and ensuring your trailer lights function reliably.

Connection Method	Advantages	Disadvantages
Ring Terminal	Secure, durable, large contact area	Requires crimping tool
Wrapped Wire	Simple, no special tools needed	Unreliable, prone to loosening, small contact area

Always double-check your connections for tightness and corrosion after completing the process. Regular inspection is crucial for maintaining reliable trailer light operation and ensuring your safety on the road.

Preparing the Grounding Location: Cleaning and Surface Preparation

Securing a Reliable Grounding Point

Before you even think about connecting your trailer lights, you need a solid, clean grounding point on your tow vehicle. A poorly prepared ground will lead to intermittent or failing lights, frustration, and potential safety hazards. Think of the ground connection as the return path for the electrical current; it’s just as crucial as the positive wire. Common locations include a sturdy, unpainted metal part of the vehicle’s frame, the hitch receiver itself (if metallic and appropriately sized), or a dedicated grounding point specifically designed for trailers. Avoid using painted surfaces or areas prone to corrosion, as these will impede a good electrical connection. Always check your vehicle’s owner’s manual or consult a qualified mechanic if unsure about suitable grounding locations.

Assessing the Existing Ground Connection

If you’re working with a pre-existing grounding setup, don’t assume it’s perfect. Take a close look at the connection. Is it corroded? Are the wires frayed or damaged? Does the connection appear loose or wobbly? Even a seemingly minor issue can significantly impact the effectiveness of your grounding. Corrosion is a common culprit, creating a high-resistance path that prevents proper current flow. A corroded connection may appear superficially intact, but internally, the electrical resistance is greatly increased. This leads to dimming lights, flickering, or total failure. A thorough inspection is essential to identify and address these issues before proceeding with any further work. If you’re unsure, it’s always best to replace any suspect components.

Cleaning and Surface Preparation: The Key to a Successful Ground

Once you’ve identified your grounding location, the cleaning process is paramount. This isn’t just about wiping it down; thorough preparation ensures a lasting, reliable connection. Begin by removing any loose debris, dirt, or grime with a wire brush. Pay close attention to crevices and hard-to-reach areas. For stubborn corrosion, consider using a specialized corrosion remover or a mixture of baking soda and water. Apply this solution, let it sit for a few minutes to allow it to work its magic, then scrub aggressively with a wire brush to remove any loosened corrosion. If the surface is excessively pitted or damaged, you may need to consider using a metal file or sandpaper to smooth out the area and remove any remaining corrosion. The goal is to expose clean, bright metal, providing a surface with optimal electrical conductivity.

After cleaning, it’s important to neutralize any remaining corrosive residue. A good degreaser can help remove any lingering contaminants and leave behind a clean, dry surface. This step is often overlooked but crucial in preventing future corrosion. Finally, using a wire brush or sandpaper can help create a slightly roughened surface. This offers a better mechanical grip for the grounding connection, preventing movement and ensuring a consistent, low-resistance connection.

Cleaning Agent	Application	Advantages	Disadvantages
Wire Brush	Mechanical removal of debris and corrosion	Effective, readily available	Can scratch the surface, requires physical effort
Corrosion Remover	Chemical removal of corrosion	Efficient at removing stubborn corrosion	Potentially harmful, requires careful handling
Baking Soda Paste	Mild abrasive cleaner	Environmentally friendly, readily available	Less effective on severe corrosion
Degreaser	Removes oil and grease	Ensures clean surface for optimal connection	May require rinsing

Choosing the Right Grounding Method: Bolts, Screws, or Clamps

Understanding Trailer Light Grounding

Proper grounding of your trailer lights is crucial for safety and functionality. A good ground ensures your lights work reliably and prevents issues like erratic flashing or complete failure. A poor ground can also lead to corrosion and premature failure of your lighting system. This section explores the best ways to achieve a solid and lasting ground connection for your trailer lights. We will examine the pros and cons of using bolts, screws, and clamps, guiding you to the most suitable method for your specific setup.

Bolts: Strength and Durability

Using bolts for grounding offers superior strength and durability. A properly sized bolt, coupled with a large washer to distribute the clamping force, creates a robust and reliable connection. This method is particularly effective when dealing with thicker metal frames or those prone to vibrations. The larger surface area provided by a bolt head and washer contributes to a more efficient and consistent electrical contact.

Screws: Convenience for Lighter Applications

Screws provide a convenient grounding solution, especially for lighter-duty applications or situations where access is limited. While they might not offer the same clamping force as bolts, self-tapping screws can be easily installed into thinner metals, and the thread design helps to ensure a secure connection. However, ensure the screw is long enough to penetrate adequately into the metal frame for a good electrical contact. Over-tightening screws, especially in thinner metals, can result in stripping the threads or damaging the metal, so take care when applying torque.

Clamps: Versatility and Adaptability

Choosing the Right Clamp

Clamps offer versatility and adaptability, making them suitable for various grounding scenarios. They provide a quick and easy way to connect the ground wire to the trailer frame without the need for drilling or tapping holes. However, the effectiveness of a clamp depends heavily on the quality of the clamp itself and the condition of the metal to which it’s attached. A poor quality clamp, or one that’s not properly tightened, will provide an unreliable ground connection and may even lead to corrosion over time. Consider the material of the clamp - stainless steel offers superior resistance to corrosion compared to cheaper alternatives. Make sure the clamp jaws can properly grip the trailer frame; insufficient surface contact will compromise the grounding effectiveness. Also ensure that the clamp is appropriately sized for the thickness of the trailer frame and the ground wire. Using the correct size helps avoid damaging either the frame or the wire during installation.

Clamp Placement and Preparation

Proper clamp placement is critical. Choose a location on the trailer frame that is clean, free from rust, and provides ample surface area for effective clamping. Removing any paint or rust in the area will significantly improve conductivity. If the trailer frame is already showing signs of significant corrosion, consider cleaning it thoroughly with a wire brush or sandpaper before attaching the clamp. Ensure the ground wire is securely fastened to the clamp, using appropriate connectors such as ring terminals. Double-check to ensure the clamp is tightened adequately to provide a firm and reliable contact between the clamp, the wire and the trailer frame. Periodically inspect your clamp connections to make sure they remain secure and haven’t loosened.

Comparison Table of Grounding Methods

Method	Strength	Ease of Installation	Corrosion Resistance	Suitability
Bolts	High	Medium	Dependent on material (stainless steel is best)	Heavy-duty applications, thicker metal frames
Screws	Medium	High	Dependent on material (stainless steel is best)	Lighter-duty applications, thinner metal frames
Clamps	Medium (dependent on quality and tightness)	High	Dependent on material (stainless steel is best)	Versatile, adaptable for various situations, quick installation, good for temporary setups

Securing a Reliable Ground Connection: Techniques for Optimal Contact

Understanding the Importance of a Solid Ground

Proper grounding of your trailer’s lighting system is paramount for safety and legal compliance. A faulty ground can lead to intermittent or non-functioning lights, significantly increasing the risk of accidents. Poor grounding also stresses the electrical system, potentially damaging lights and even the tow vehicle’s wiring. Maintaining a clean and secure ground connection ensures consistent illumination, enhancing visibility and preventing costly repairs.

Identifying Grounding Points on Your Trailer

Before beginning any work, locate the designated grounding points on your trailer. These are typically metal components directly attached to the trailer’s frame, such as the tongue, frame rails, or a specifically designed ground lug. Inspect these points for rust, corrosion, or paint that might impede electrical conductivity. Clean any identified imperfections before proceeding. A clean metal surface is essential for a reliable electrical connection.

Using a Dedicated Ground Wire: Best Practices

The most reliable grounding method involves using a dedicated ground wire directly connected to a suitable grounding point on the trailer frame and to the trailer’s lighting harness. Choose a wire with sufficient gauge to handle the amperage draw of your lights. A heavier gauge wire (e.g., 10 AWG or 8 AWG) is generally recommended for larger trailers with numerous lights. The wire should be securely fastened using appropriate connectors and fasteners, ensuring a tight, vibration-resistant connection.

Cleaning and Preparing the Ground Connection Point

A clean and well-prepared grounding point is crucial. Use a wire brush or sandpaper to remove any rust, corrosion, paint, or other debris that might interfere with electrical contact. Ensure the metal surface is bright and clean before attaching the ground wire. A poor connection will lead to increased resistance and potentially overheating, which can damage both the wire and the trailer’s electrical system. Applying a thin layer of anti-corrosion grease or sealant can help protect the connection from the elements and prolong its lifespan.

Utilizing Different Grounding Techniques: A Detailed Exploration

Several techniques exist to achieve optimal grounding. The simplest method is to use a ring terminal connector crimped onto the end of the ground wire and bolted directly to a clean grounding point on the trailer frame. Ensure the bolt is tight, and consider using a lock washer to prevent loosening. A second method is to use a heavy-duty cable clamp to secure the ground wire to the frame. This is particularly useful if there’s limited space for bolting. For trailers with multiple ground points, consider using a ground bus bar – a metal strip with multiple connection points – to consolidate all ground wires, ensuring a common ground plane. This method is recommended for improved signal quality and better overall reliability. Alternatively, utilizing a properly sized grounding strap directly between the trailer frame and the tow vehicle’s hitch receiver provides a robust and secondary ground path.

Grounding Method	Advantages	Disadvantages
Ring Terminal & Bolt	Simple, secure, widely available	Requires drilling/bolt holes in some applications
Cable Clamp	Easy installation, no drilling required	May not be as strong or reliable as a bolted connection
Ground Bus Bar	Centralized grounding, improved signal quality	More complex installation, higher cost
Ground Strap to Hitch	Robust, secondary ground path	Requires an appropriate hitch and receiver

Choosing the best technique depends on the trailer’s construction, available space, and personal preference. Remember to always prioritize a strong, reliable connection to ensure safe and effective trailer lighting.

Verifying the Ground Connection: Testing for Continuity and Proper Function

1. Identifying the Ground Wire

Before you start testing, it’s crucial to correctly identify the ground wire in your trailer’s wiring harness. This is typically a bare wire, a wire with green insulation, or a wire connected to the trailer frame itself. Consult your trailer’s wiring diagram if you’re unsure. The ground wire completes the electrical circuit, allowing the lights to function correctly. A faulty ground is often the culprit behind malfunctioning trailer lights.

2. Gathering Your Tools

To test your trailer’s ground connection, you’ll need a few essential tools. A multimeter is the key component; it measures electrical continuity and voltage. You’ll also need a test light or a 12-volt test lamp to verify the circuit’s integrity. A wire stripper might be needed to expose bare wire ends for better contact during testing. Finally, having a helper can significantly expedite the testing process.

3. Preparing the Trailer for Testing

Ensure your trailer is safely disconnected from your tow vehicle. This prevents accidental short circuits and protects both your vehicle and the tester. If possible, park the trailer on a dry surface to minimize the risk of accidental ground contact. Access to the wiring harness should be readily available; if necessary, carefully remove any panels or access points.

4. Testing for Continuity

Using your multimeter, set it to the continuity test setting (usually represented by a diode symbol). Place one multimeter probe on the trailer’s ground wire and the other probe on a known good ground point, such as an unpainted part of the trailer frame. If the multimeter beeps and displays a low resistance value (close to zero), it indicates a good ground connection. A lack of beep or a high resistance value suggests a break in the ground circuit. Repeat this test at various points along the ground wire, if possible, to rule out corrosion or damage within the wiring itself.

5. Checking for Voltage at the Light Fixtures

Next, connect your trailer to the tow vehicle’s wiring harness. With the vehicle’s lights turned on, use your multimeter to measure the voltage at each light fixture. Place one multimeter lead on the light fixture’s ground wire (or frame) and the other on the respective light’s power wire. You should see a voltage reading of approximately 12 volts if the light is functioning correctly. A low voltage or no voltage reading indicates a problem, possibly related to the ground connection.

6. Troubleshooting a Poor Ground Connection

If your tests reveal a poor ground connection, several approaches can be taken to resolve the issue. Start by visually inspecting the ground wire for any visible damage such as breaks, corrosion, or loose connections. Corrosion is a common culprit, especially in exposed areas. Clean any corrosion using a wire brush or sandpaper, exposing clean metal for optimal contact. A weak connection might require tightening a loose terminal or replacing a corroded connector. If the ground wire itself is damaged, replace it with an appropriately sized and insulated wire. Ensure that any new wiring is properly secured, using appropriate fasteners to avoid vibration-induced damage over time.

Sometimes, the ground point itself might be the problem. If the ground wire is connected to painted metal, remove the paint to expose clean metal for better conductivity. Consider adding a secondary ground wire to supplement the existing ground, especially if the trailer is large or heavy-duty. This extra ground path can provide redundancy and enhance conductivity. This technique is particularly beneficial if you’re dealing with older trailers with possibly degraded original grounding systems. Always use appropriate-sized wire and connectors when adding additional grounding.

Finally, if you suspect grounding issues within the trailer’s wiring harness, you may need to carefully trace the wiring to identify broken strands or damaged insulation. In complex scenarios, consulting a qualified trailer technician can be highly beneficial. Their expertise can diagnose intricate electrical problems quickly and efficiently, saving time and effort. A comprehensive check of the trailer’s entire electrical system can further pinpoint more subtle issues that might otherwise be overlooked.

Problem	Possible Cause	Solution
No lights	Broken ground wire	Replace the ground wire
Dim lights	Corrosion on ground connection	Clean the connection
Intermittent lights	Loose ground connection	Tighten the connection

Troubleshooting Common Grounding Issues: Diagnosing and Solving Problems

Inspecting the Trailer Wiring Harness

Before diving into complex troubleshooting, a thorough visual inspection of your trailer’s wiring harness is crucial. Look for any obvious signs of damage, such as frayed wires, corrosion, or broken connectors. Pay close attention to the ground wire itself, often a thicker wire than others, typically a dark color (black). Check for any breaks in the wire’s insulation, particularly at points where it bends or passes through sharp edges. Loose connections are a frequent culprit, so carefully examine every connector and ensure all screws are tight. Remember that moisture is a significant enemy of electrical connections, causing corrosion and high resistance. Any signs of water intrusion or rust warrant immediate attention. If you discover any damage, repair or replace the affected sections promptly, ensuring a clean and secure connection.

Testing the Trailer’s Ground Connection

A reliable ground is fundamental for proper light function. To test the trailer’s ground, you will need a multimeter. Set the multimeter to measure resistance (Ω). First, disconnect the trailer from the tow vehicle. Then, touch one multimeter probe to a known good ground point on the trailer’s frame (a clean, unpainted metal surface) and the other probe to the ground wire at the trailer’s light connector. A low resistance reading (ideally below 1 ohm) indicates a good ground. A high reading or an “OL” (overload) suggests a poor ground connection. The location of this ground point will vary depending on the trailer but it’s often on the frame near the hitch area. The ground wire is usually thicker and a darker color (black). You should always ensure the multimeter is properly set to resistance before testing to avoid damaging the meter.

Checking the Tow Vehicle’s Wiring

Even if the trailer’s wiring checks out, problems could originate in your tow vehicle’s wiring harness. Inspect the vehicle’s connector for any corrosion, loose pins, or broken wires. Similarly, trace the vehicle’s wiring back to where it connects to the vehicle’s chassis ground. Look for any signs of damage along this path. A multimeter can again be used to verify a good ground connection at the tow vehicle’s side of the connector using the same method as described for the trailer.

Examining the Trailer Lights Themselves

Sometimes, the issue isn’t with the wiring, but the lights themselves. Visually inspect each light fixture for broken filaments or damaged internal wiring. A simple test with a multimeter can check the lights’ continuity. Set the multimeter to measure continuity (typically a diode symbol). Connect the multimeter probes to each terminal of the light bulb. A low resistance reading indicates the light is intact. If it reads infinity (OL) it is faulty and needs replacing.

Using a Test Light

A test light is another invaluable tool for diagnosing trailer light problems. A test light will indicate if power is flowing to the specific sections of the circuit. By testing at different points along the circuit, you can identify exactly where the break in the circuit might be. You can test at the trailer connector, the wire harness near the lights, and at the light fixtures themselves. The test light is a much simpler way to check for power than a multimeter if you are not comfortable using one.

Inspecting the Trailer Connector

The trailer connector is a frequent point of failure due to repeated use, exposure to the elements, and potential damage from impacts. Corrosion on the pins is a very common cause of poor electrical contact. Carefully inspect each pin in the connector for corrosion or bending. Clean any corroded areas with a wire brush or contact cleaner and then reinsert the pins firmly to ensure good contact. Also check the connector itself for any physical damage or cracks that may compromise the connection. Look specifically at the ground pin - usually located near the top or center of the connector, and often larger than the other pins. A common mistake is to assume a loose pin is merely loose, but often it has broken off internally, requiring complete replacement of the trailer connector.

Understanding and Addressing Grounding Issues: A Deeper Dive

Trailer lighting systems rely on a complete electrical circuit. This circuit includes the power source (your vehicle’s battery), the lights themselves, and a crucial element often overlooked: the ground. The ground isn’t just a simple path back to the battery; it’s a critical part of the circuit that completes the flow of electrons. A poor ground connection increases resistance in the circuit, leading to dimming lights, intermittent flickering, or complete failure. The primary symptom of a grounding problem is often lights that fail to work altogether or behave erratically (flickering or partially working). The severity depends on the resistance of the poor connection. A slightly poor ground may cause just a dim light, whereas a completely broken ground connection will prevent the lights from working at all. While a visually obvious broken wire is easily fixed, corrosion often hides beneath the surface, presenting itself only as a poorly functioning light. Therefore, thorough cleaning of connectors and the use of dielectric grease on the connections are vital preventative measures. Using a multimeter to verify circuit continuity and a test light to confirm the presence of voltage will pinpoint the exact location of a faulty connection or component. This systematic approach ensures correct identification of the issue, saving time and preventing further damage.

Problem	Possible Cause	Solution
Lights don’t work	Broken ground wire, corroded connector, faulty light	Inspect wiring, clean connectors, replace faulty parts
Lights are dim	Poor ground connection, high resistance in wiring	Improve ground connection, check wiring for damage
Lights flicker	Loose connection, intermittent short circuit	Tighten connections, check wiring for damage

Maintaining a Solid Ground: Preventing Future Grounding Problems

Inspecting Your Wiring Harness Regularly

Regular inspection is key to preventing grounding issues before they become major headaches. Take a close look at your trailer’s wiring harness at least once a year, or more frequently if you use your trailer extensively in harsh conditions. Check for any signs of damage, such as fraying wires, corrosion, or broken connectors. Pay particular attention to areas where the harness is likely to experience abrasion or flexing, like near the hitch and axles. A damaged wire can easily break the ground circuit, leading to malfunctioning lights.

Using High-Quality Components

Investing in high-quality wiring, connectors, and other components will significantly increase the lifespan of your trailer’s electrical system and reduce the risk of grounding problems. Cheap parts are more prone to corrosion and failure, which can compromise the ground connection. Look for components with robust weatherproofing and durable materials designed to withstand vibration and moisture.

Proper Connector Use and Maintenance

Trailer connectors are crucial for a good ground connection. Ensure you’re using the correct type of connector for your trailer and tow vehicle, and make sure they are securely connected. Regularly clean and inspect connectors, removing any dirt, debris, or corrosion that could impede the flow of electricity. A small amount of dielectric grease applied to the connector pins can help prevent corrosion and ensure a solid connection.

Grounding Directly to the Trailer Frame

Always ensure that the trailer’s ground wire is securely connected directly to the trailer’s frame. Don’t rely on connecting the ground wire to a painted surface or a flimsy part of the frame. A sturdy metal-to-metal connection is critical. Consider using a ground strap or a heavy-gauge wire for the best connection. Clean any paint or rust from the contact point before attaching the ground wire.

Using a Ground Wire with Sufficient Gauge

The gauge of the ground wire (thickness) is vital. Too thin a wire can overheat and cause a break in the ground circuit. Consult your trailer’s wiring diagram or a qualified electrician to determine the appropriate gauge for your specific setup. Generally, a heavier gauge (lower number) wire is preferable for better conductivity and reliability.

Protecting Wiring from the Elements

Harsh weather can wreak havoc on trailer wiring. Protect your wiring harness from moisture, dirt, and UV rays using appropriate protective coverings such as conduit or split loom tubing. This simple step can significantly extend the life of your wiring and prevent corrosion and grounding issues. Properly sealing any exposed connectors is also essential.

Avoiding Sharp Bends and Excessive Strain

Avoid sharp bends or excessive strain on the wiring harness. These can damage the wires, leading to breaks and grounding problems. Route the wiring neatly and secure it using cable ties or clamps to prevent it from dangling or rubbing against other parts of the trailer. Keep wiring away from moving parts that could cause abrasion or damage.

Troubleshooting and Repairing Grounding Issues (Detailed)

When troubleshooting grounding problems, systematically check each component of the electrical system. Start with the simplest checks: inspect connectors for corrosion, clean them with a wire brush, and reapply dielectric grease. Then, trace the ground wire from the lights all the way back to the frame to ensure there are no breaks in the connection. Check the wire’s gauge for adequacy. Using a multimeter, verify continuity between the trailer frame and the ground point of each light. If you find a break, repair it promptly, ensuring a clean, strong metallic connection. For complex issues involving multiple lights or other electrical components, carefully disconnect everything and rebuild, using new high-quality parts to ensure reliability. Refer to your trailer’s wiring diagram to understand the circuit. Consider seeking professional assistance from a certified trailer repair shop or electrician if you’re uncomfortable working with the electrical system yourself. Remember safety first – disconnect the battery before performing any electrical work. Proper grounding is not just about functionality; it’s about safety, preventing shorts and electrical hazards.

Problem	Possible Cause	Solution
One or more lights not working	Broken ground wire, corroded connector, insufficient gauge wire	Inspect and repair ground wire. Clean/replace connector. Upgrade to heavier gauge wire if necessary.
Flickering lights	Loose connection, corrosion, frayed wires	Tighten all connections, clean corroded components, replace damaged wires.
All lights not working	Broken ground connection at the trailer frame, faulty tow vehicle wiring	Check the main ground connection at the trailer frame. Inspect tow vehicle wiring harness.

Alternative Grounding Solutions: Addressing Unique Wiring Challenges

9. Dealing with Corrosion and Poor Connections

Corrosion is the silent killer of trailer lighting circuits. It’s a common problem, especially in areas with harsh weather conditions, saltwater exposure, or simply where trailers are frequently exposed to the elements. Even seemingly minor surface rust on a trailer frame or connector can create significant resistance, dramatically reducing the effectiveness of your ground, leading to dim or non-functioning lights. The problem is compounded by poor connections, whether due to loose wires, improperly crimped connectors, or the use of inappropriate terminal connectors.

Identifying Corrosion

Before attempting any repair, you need to properly identify the source of the grounding issue. Visually inspect all connections, paying close attention to the trailer frame, the ground wire connection point on the trailer, the hitch, and the vehicle’s tow connector. Look for signs of corrosion – green or white powdery deposits, pitting, or discoloration. A multimeter can be a valuable tool; use it to test the resistance between the trailer frame and a known good ground on your tow vehicle. High resistance readings indicate a corrosion problem. You might also use a test light or a 12V bulb to check for continuity between the frame and your ground points; a dimly lit bulb or no illumination points to a poor connection.

Cleaning Corroded Connections

Cleaning corroded connections is crucial. Start by disconnecting all wires from the affected areas. Use a wire brush, sandpaper, or specialized corrosion removal tools to clean metal surfaces thoroughly. Pay attention to removing all traces of corrosion from the connector terminals and the mating surfaces of the hitch. For stubborn corrosion, you might consider using a commercial corrosion remover, following the manufacturer’s instructions carefully. Always wear appropriate safety glasses and gloves when working with these chemicals.

Preventing Future Corrosion

Preventing future corrosion requires a proactive approach. After cleaning, apply a corrosion inhibitor to all cleaned metal surfaces to protect them from moisture. Di-electric grease on connectors and terminals will prevent corrosion and ensure a reliable connection. Regularly inspect your trailer’s wiring and connections, especially after exposure to harsh weather. Consider using stainless steel or other corrosion-resistant materials for replacement components where feasible. Properly sized and appropriately sealed connectors will also aid significantly in long-term corrosion prevention.

Using a Dedicated Ground Wire

In some cases, relying solely on the trailer frame as a ground might be insufficient, especially on older trailers or those with extensive rust. Adding a dedicated ground wire, running directly from a clean, solid point on the trailer frame to a secure ground point on the tow vehicle’s hitch, can significantly improve the grounding system. This provides a dedicated low-resistance path for the electrical current, bypassing potentially problematic areas of the frame. Ensure this additional ground wire is adequately sized and protected from abrasion.

Problem	Solution
Corrosion on trailer frame	Clean with wire brush, apply corrosion inhibitor
Loose connectors	Tighten connections, use dielectric grease
High resistance readings	Investigate wiring, clean connections, consider dedicated ground wire
Dim or non-functioning lights	Check ground connection, inspect wiring for breaks, test with multimeter

Grounding Trailer Lights: Best Practices for Safe Operation

Proper grounding of trailer lights is crucial for both safety and legal compliance. A poorly grounded system can lead to malfunctioning lights, which pose a significant risk to other drivers, especially at night or in low-visibility conditions. Moreover, inadequate grounding can damage the electrical system of both the towing vehicle and the trailer. Therefore, a thorough understanding and meticulous application of grounding techniques are paramount.

The most effective grounding method involves connecting the trailer’s ground wire directly to the vehicle’s chassis, ensuring a solid, low-resistance connection. This is typically achieved through a dedicated ground wire running from the trailer’s light harness to a clean, unpainted metal surface on the trailer frame. This connection should be secured using appropriate connectors and fasteners, avoiding the use of corrosion-prone materials. Regular inspection of this connection is essential to ensure its integrity and prevent corrosion, which can increase resistance and compromise the ground path.

Another critical aspect is the maintenance of the wiring itself. Inspect the trailer’s wiring harness for any signs of damage, fraying, or corrosion. Replace any damaged sections immediately to maintain the integrity of the electrical circuit. Keeping the wiring clean and dry will also help prevent the build-up of resistance and ensure a reliable ground. Regular cleaning and application of a suitable protective coating can further enhance the longevity and reliability of the ground connection.

Failure to properly ground trailer lights can result in partial or complete lighting failures, potentially leading to dangerous situations. It is, therefore, essential to prioritize proper grounding procedures, ensuring a safe and legally compliant operation.
